- Material:Carbide
- Model Number:TM580-S4-056005100
- Brand Name:JINTE
- Place of Origin:CN
- Coating:AlCrSiN

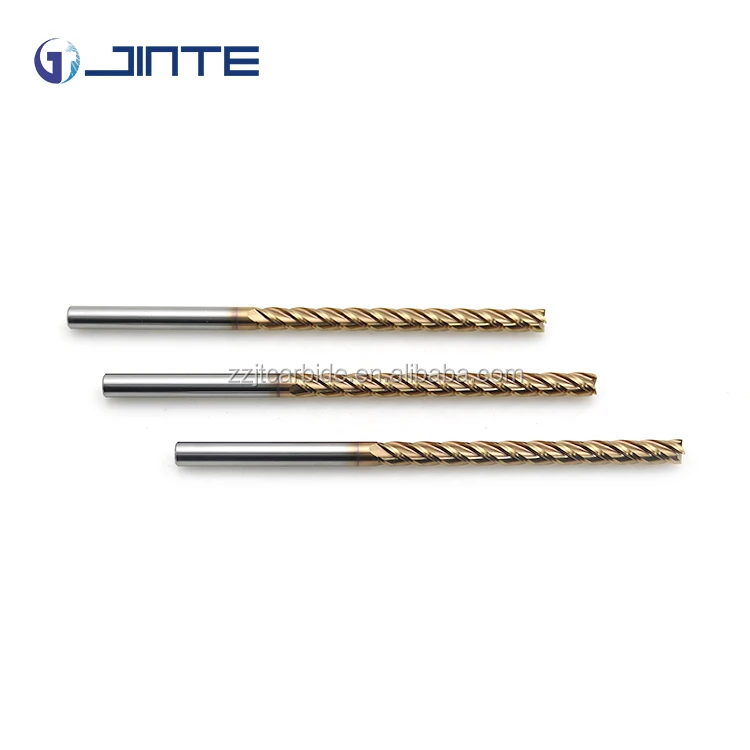

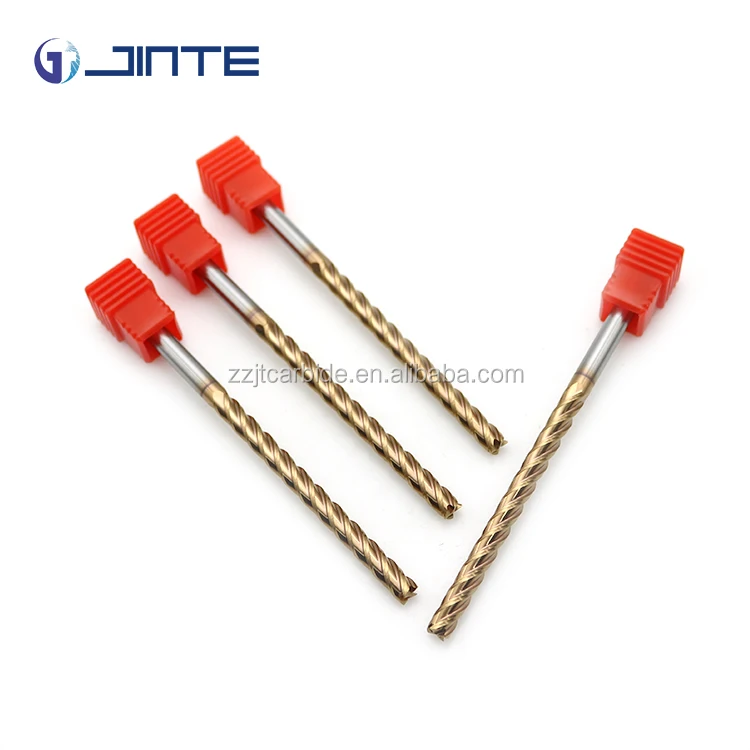

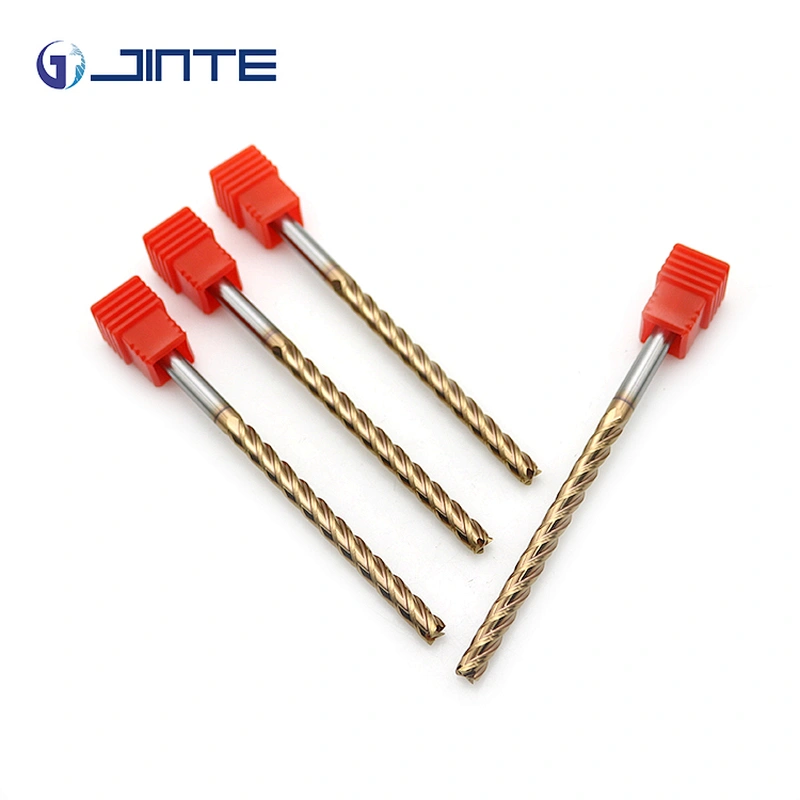

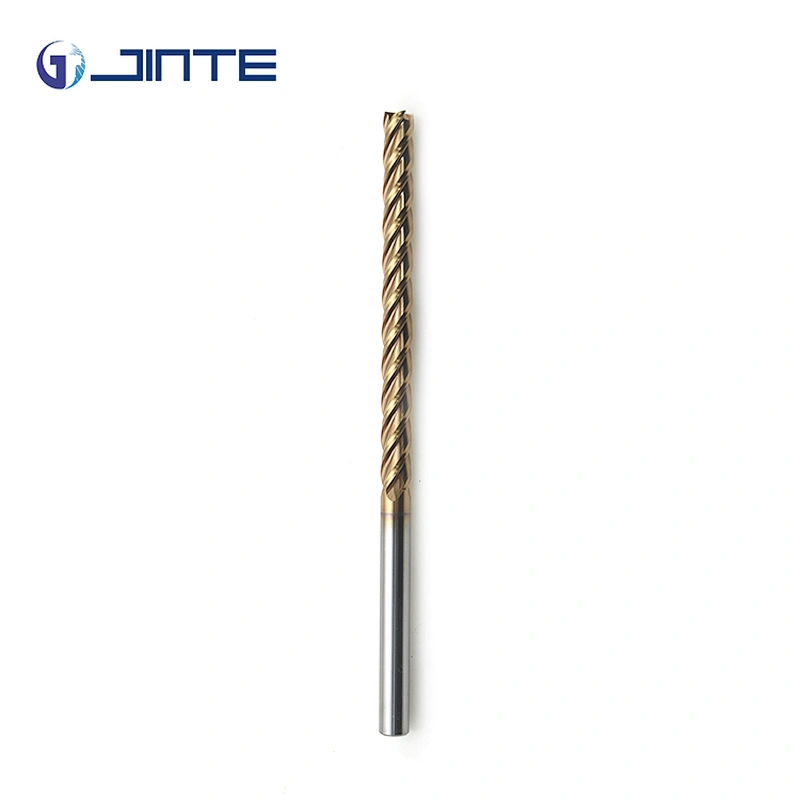

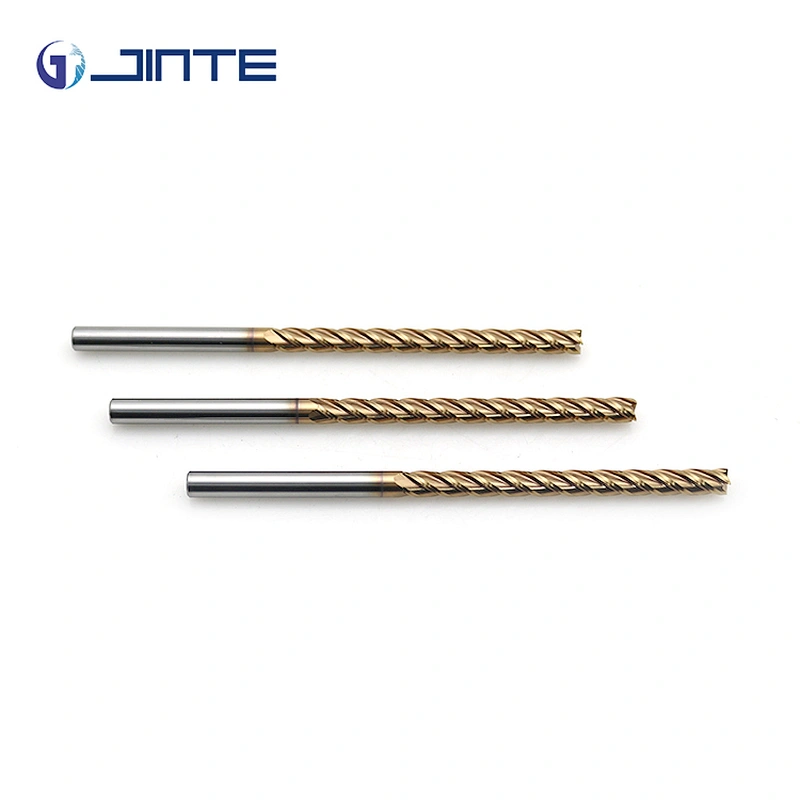

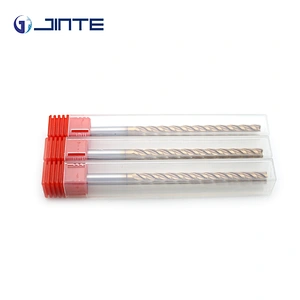

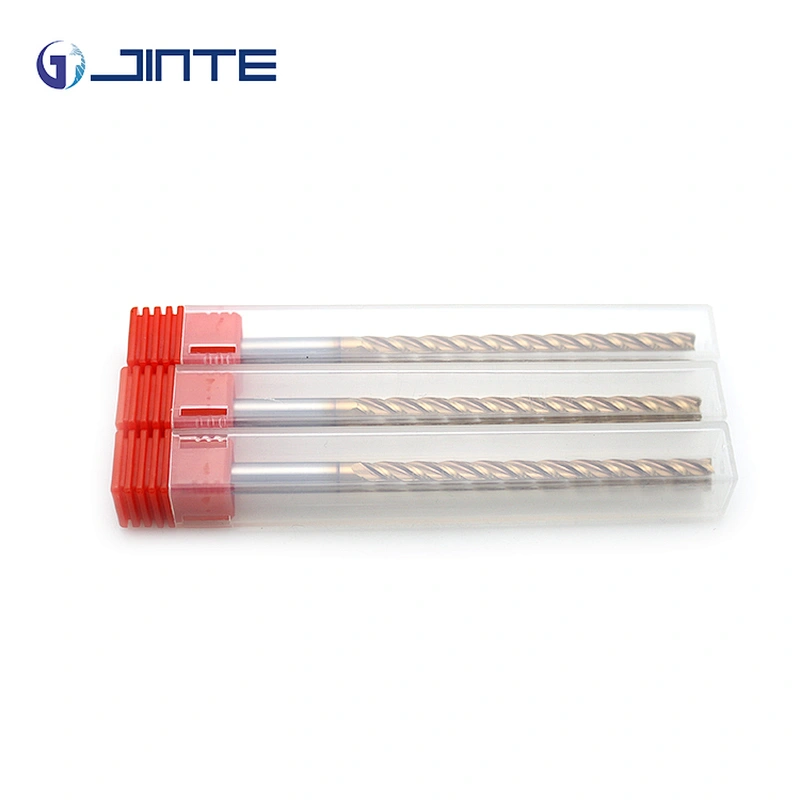

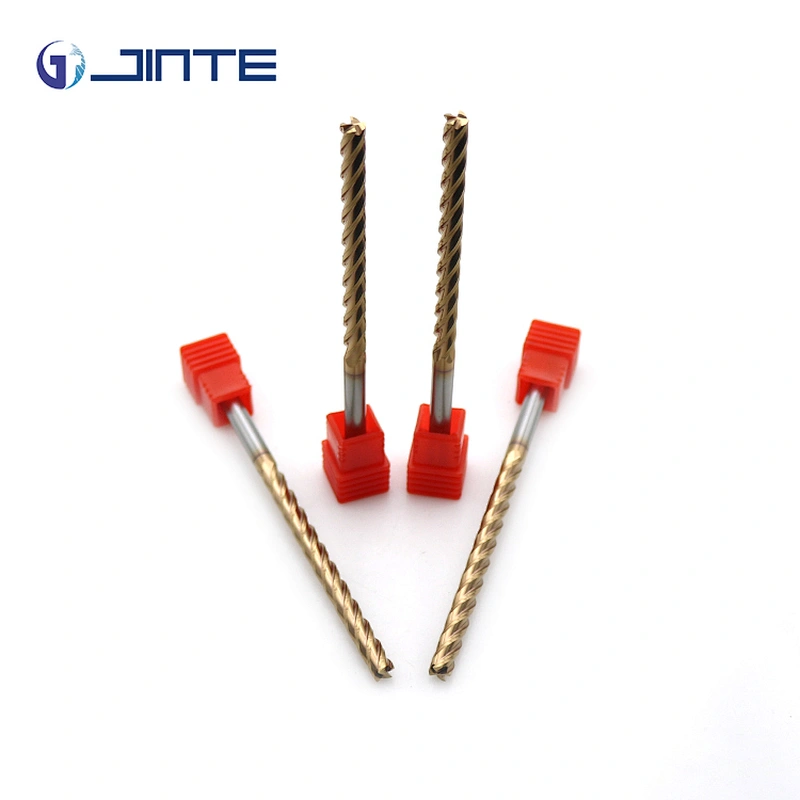

carbide endmill long neck 4 flute end mill 5mm 55hrc cnc cutting tools for slotting
Product Description
Product Name | Square end mill | ||||
Workpiece Material | Carbon Steel/ Alloy Steel/ Cast Iron/Stainless steel | ||||
Application | Side Face/ Step Shoulder/ Straight Slot /Deep Slot/Profiling | ||||
Sample | Yes | Type | Square | ||
Stock | Yes | Raw Material | WF25 | ||
OEM/ODM | Yes | Grain of Powder | 0.4μm | ||
Tolerance | ±0.01 | Helix Angle | 35° | ||
Flutes | 4Flute | Coating | AlCrSiN | ||
HRC | HRC55/60 | Coating Color | Bronze | ||
Details Images
Product Paramenters
Materials and coatings | ||||||||
Item | TM series | EM series | XM series | SM series | ||||
Material | YL10.2 | WF25 | K44 | K44 | ||||
Details | Grain size: 0.5 Element: WC-90%, CO-10%, Orther-2% Performance: Density- 14.5g/mm³ Hardness- 92.5HRA 5. TRS:4000N/mm² | Grain size: 0.4 Element: WC-86%, CO-12%, Orther-2% Performance: Density- 14.2g/mm³ Hardness- 93.2HRA TRS:4200N/mm² | Grain size: 0.3 Element: WC-85%, CO-12%, Orther-3% Performance: Density- 14.15g/mm³ Hardness- 93.5HRA TRS:4500N/mm² | Grain size: 0.3 Element: WC-85%, CO-12%, Orther-3% Performance: Density- 14.15g/mm³ Hardness- 93.5HRA TRS:4500N/mm² | ||||
Element: TiN+TiSiN Thickness: 3-4um Hardness: 3600HV Working Temprature: 1000 degree COF ：0.4 | Element: ALL Thickness: 3-4um Hardness: 4300HV Working Temprature: 1200 degree COF ： 0.3 | Element: ACO Thickness: 3-4um Hardness: 4400HV Working Temprature: 1100 degree COF : 0.3 | Element: XT Thickness: 3-4um Hardness: 4100HV Working Temprature: 1100 degree COF ： 0.25 | |||||
Coating | NaNo-PVD | NaNo-PVD | NaNo-PVD | NaNo-PVD | ||||
Color | Bronze | Bronze | Color: Dark-grey | Color: Dark-grey | ||||
Suitable for steel&cast iron ( | Suitable for high-hardness steel pieces of high-efficiency processing | Suitable for general machining of stainless steel(<280HB) | Suitable for general machining of stainless steel(<280HB) | |||||
The advantage of end mills
1.High performance, universal machining.2.Advanced coating allows for better wear observation.3.Unique cutting edge design, balancing edges strength and sharpness, with low cutting force.4.Advanced coating allows for better wear observation.5.With new superlattice coatings technology, for excellent wear resistance, oxidation resistance, thermal stability and lubrication performance.6.The smooth shank has excellent chamfering, which is convenient for installation, it saves the time of changing the tool.
Company Profie
Zhu Zhou Jin Te Cemented Carbide Co.,LTD
As a professional carbide end mill manufacturer, Zhuzhou Jinte cemented carbide co., Ltd has exported the carbide insert to more than 80 countries and regions, such as South Africa, India, Malaysia, Indonesia, Brazil and so on. Some of the carbide insert customers become our agents in their area. We hope to have the long friendly business relationship with more customers from all over the world in the future.
Certifications
FAQ
Q1 : Are you factory or trading company?
Factory. We are professional manufacturer with 8 years of production experience.
Q2: Are the products of high quality?
Absolutely. All products will be tested before bulk production, and we will check the
physical properties, shape and tolerance to ensure qualified products before shipping.
Q3: How to place an order?
1. Fill your Order List in our online Inquiry System.
(Also you can directly contact our salesperson by E-mail / Skype / WhatsApp)
2. We will make a feedback to you ASAP after receive your order list.
Q4: Can you provide samples?
Yes, we can. Free samples can be provided to test if you really wanna have business
with us.
Q5: Why choose us?
With ISO9001 certificate, OEM/ODM service, fast delivery and rich stock, we keep
good quality and reliable cooperation for global valued customers.
Factory. We are professional manufacturer with 8 years of production experience.
Q2: Are the products of high quality?
Absolutely. All products will be tested before bulk production, and we will check the
physical properties, shape and tolerance to ensure qualified products before shipping.
Q3: How to place an order?
1. Fill your Order List in our online Inquiry System.
(Also you can directly contact our salesperson by E-mail / Skype / WhatsApp)
2. We will make a feedback to you ASAP after receive your order list.
Q4: Can you provide samples?
Yes, we can. Free samples can be provided to test if you really wanna have business
with us.
Q5: Why choose us?
With ISO9001 certificate, OEM/ODM service, fast delivery and rich stock, we keep
good quality and reliable cooperation for global valued customers.
Our company work with below products also, if you are interesting, pls click and learn it. thanks. | ||
Solid Carbide Endmills | Hardness Grade | |
Suitable for General Steel( | ||
Suitable for General Steel,cast iron( | ||
Suitable for High Hard Material, steel, cast ironetc( | ||
Titanium Alloy, High-temperature Alloy, Harden material, etc( | ||
Stainless steel and hardness steel | ||
Surface Mirror Finish | ||
